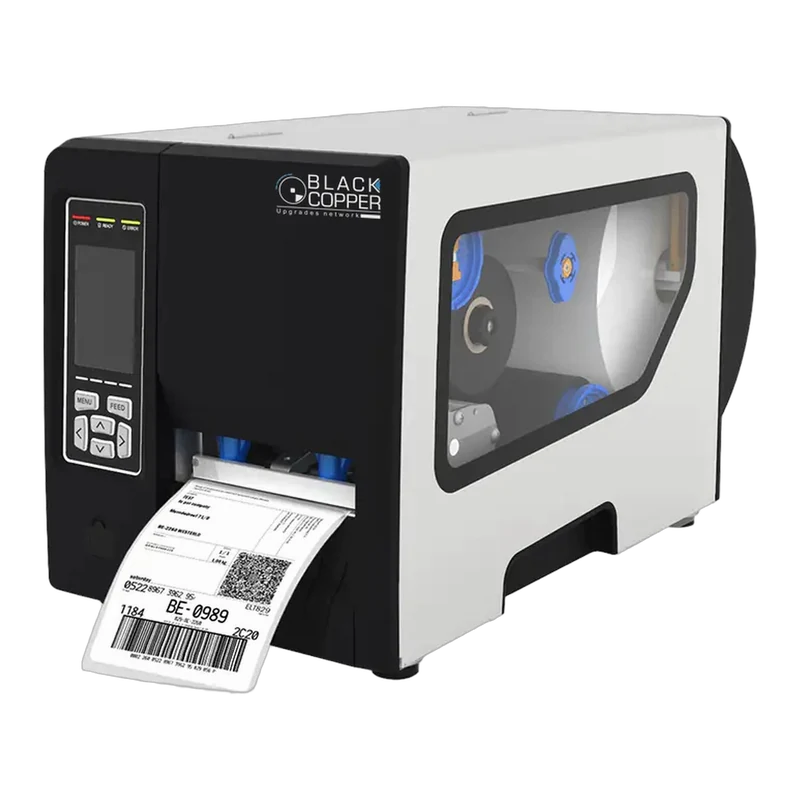

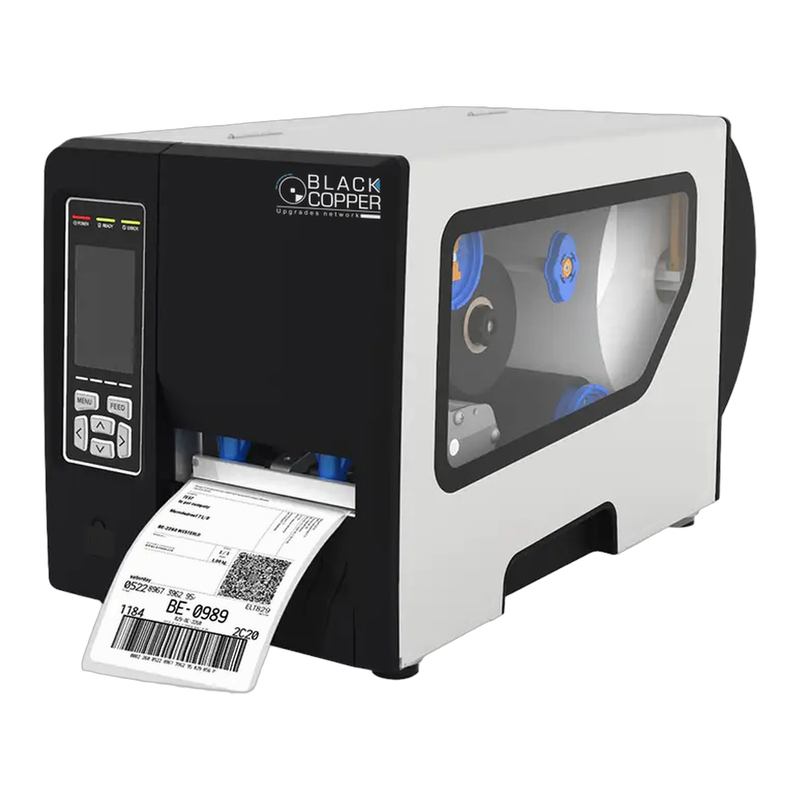

BlackCopper BC-LP4600 4" Industrial Thermal Transfer Barcode Label Printer, 300 DPI, USB + Serial + LAN

Industrial Barcode Label Printers BC-LP4600

BlackCopper 4" Industrial Thermal Transfer Barcode Label Printer

300 DPI
USB + Serial + LAN

4-inch, 300 DPI industrial label printer with USB, Serial and LAN.

Up to 8 ips (203 mm/s) print speed
3.5" LCD display
600 m ribbon capacity

BC-LP4600 DatasheetFull specifications (PDF) · 994.16KB BC-LP4600 User ManualSetup, loading, troubleshooting (PDF) · 3.41MB

Available for distributors & projects

Tiered distributor and project pricing on request. Share the quantity and destination – our partner team replies with a tailored quotation.

Request distributor pricing Email partner team

B2BTiered pricing
QCChecked before dispatch
24hPartner response

Overview

The BlackCopper BC-LP4600 is a 4-inch, 300 DPI industrial barcode label printer with USB, Serial and LAN, a 3.5" LCD and 600 m ribbon capacity for high-volume labelling.

An industrial-class printer with 300 DPI detail for small barcodes, component and pharmacy labels. Large 8-inch label rolls and 600 m ribbons keep long print runs going with fewer media changes.

Key features

4-inch (104 mm) industrial printing at 300 DPI
Up to 8 ips (203 mm/s) print speed
Thermal transfer and direct thermal printing
USB, Serial and LAN interfaces
3.5" LCD display (320 × 480) with menu and feed keys
600 m ribbon and 8" (203 mm) label rolls
128 MB RAM, 128 MB flash and SD card slot
TSPL, ZPL, EPL and DPL printer languages
Movable black mark and gap sensors
Printhead and platen roller rated for 30 km

Specifications

General

Brand	BlackCopper
Model	BC-LP4600
Resolution	300 DPI (12 dots/mm)
Interfaces	USB, Serial, LAN (Ethernet)
Display	3.5" LCD, 320 × 480 pixels

Printing

Printing method	Thermal transfer / direct thermal
Max. print speed	Up to 8 ips (203 mm/s)
Max. print width	104 mm (4.09")
Printer languages	TSPL, ZPL, EPL, DPL

Media

Media types	Continuous, gap, black mark, fan-fold, perforated
Media width	20–120 mm (0.78"–4.7")
Media length	10–889 mm (0.39"–35")
Media thickness	0.06–0.254 mm (0.0023"–0.01")
Media roll	203 mm (8") outer diameter 25.4 mm (1") core

Ribbon

Max. ribbon length	600 m (1,968 ft)
Ribbon width	20–110 mm (0.78"–4.3")
Ribbon outer diameter	91 mm (3.58")
Ribbon core	25.4 mm (1")

Hardware

Memory	128 MB RAM 128 MB flash
Media sensors	Movable black mark sensor Movable gap sensor
Memory card	Standard SD card slot
Real-time clock	Optional

Fonts, barcodes & graphics

Fonts & graphics	Font 0 – Font 8
1D barcodes	Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, Plessey, POSTNET, China POST, GS1 DataBar, Code 11
2D barcodes	PDF-417, MaxiCode, DataMatrix, QR Code, Aztec

Software

Drivers	Windows, Linux, Mac, Android, Chrome OS
Label software	BarTender UltraLite

Durability

Printhead life	30 km
Platen roller life	30 km

Physical & environment

Dimensions	504 × 257 × 297 mm (D × W × H)
Weight	11 kg
Operating	5–40 °C (41–104 °F) 25–85% humidity, non-condensing
Storage	−40–60 °C (−40–140 °F) 10–90% humidity, non-condensing

In the box

Power cord
USB cable
User manual
CD
2 ribbon spindles
Test ribbon
Ribbon paper core
Test label roll

Ideal for

Warehouse and logistics labels
Manufacturing and product ID
Shipping and pallet labels
Distribution centres

Why BlackCopper

POS resellers build complete checkout packages with BlackCopper – terminals, scanners, receipt and label printers, cash drawers and accessories tested to work together. One brand across the counter means fewer compatibility questions, simpler support and faster store deployments.

Distributor programme
